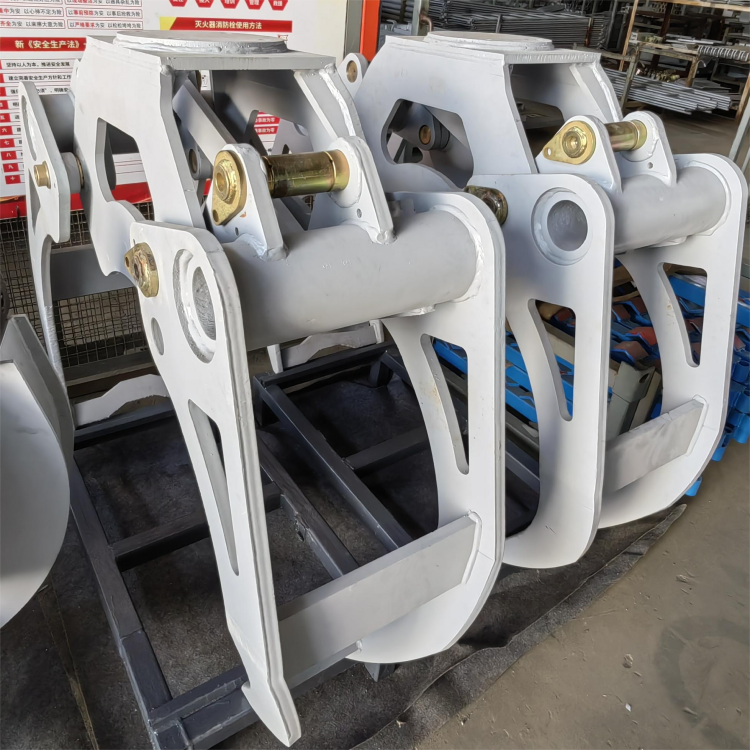

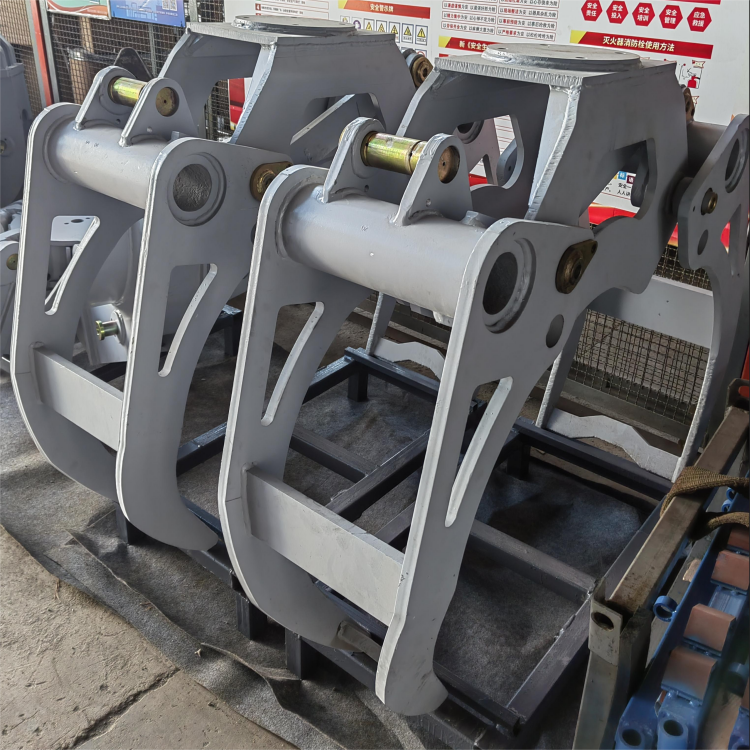

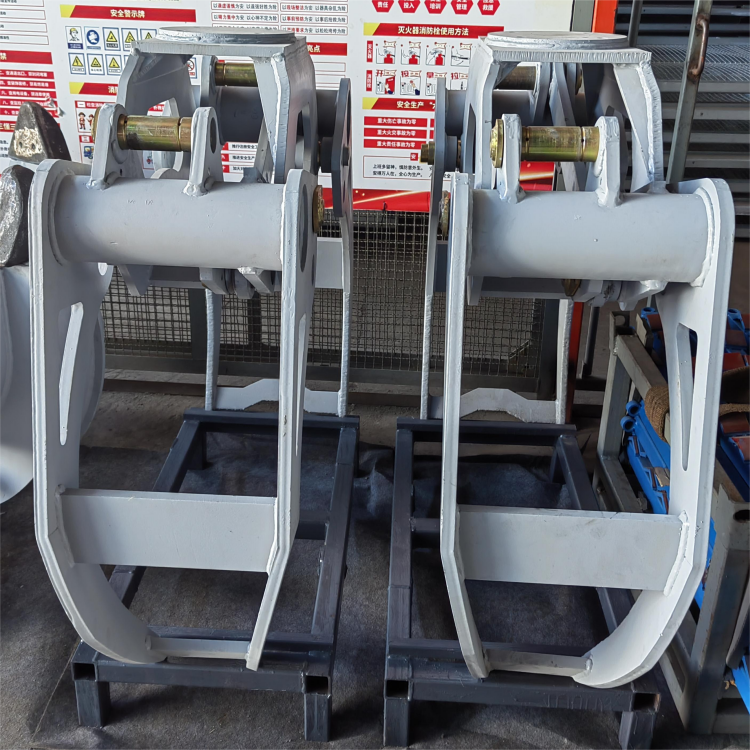

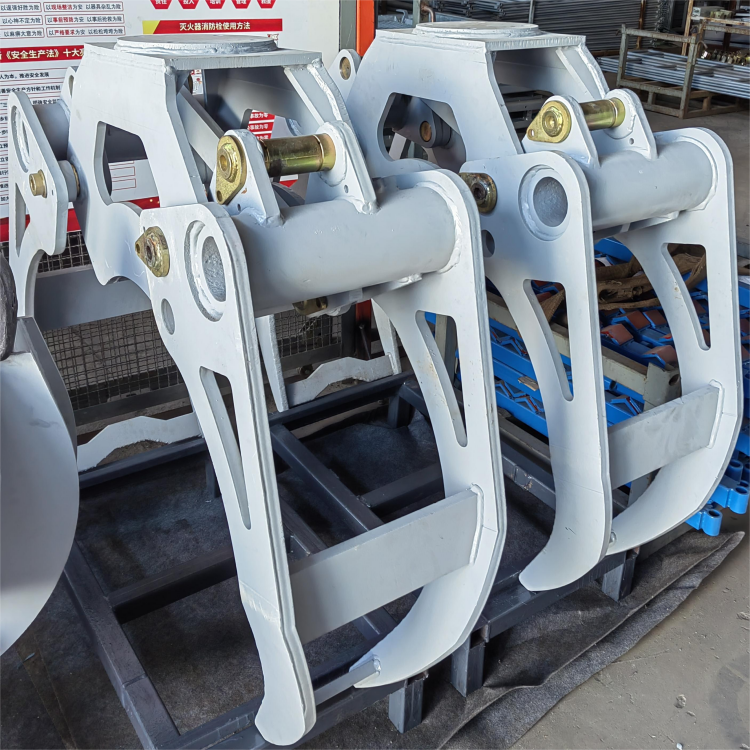

SQQ08100 clamp grab is designed specifically for the crane equipment ,suitable for 3Ttonnage of hydraulic lorry-mounted crane.The grapple is suitable for all kinds of harsh environment to engage in scrap iron and steel,bulk materials and waste material handing,has been widely used in the port,railway ,metallurgy ,mining ,construction and other industries.
SQQ08100 clamp grab is made up by the rotating motor,cylinder,control valve,flapping and other components.Hydraulic power source is provided by the crane with two sets of loops,one for the rotation,another for opening and closing,respectively,directly into the rotary motor in the corresponding oil port.The hydraulic oil directly drives the rotary motor to rotate gripper while the hydraulic cylinder telescopically drives the bucket body to complete its opening and closing.
抓斗自重 Weight | 345kg |
最大載荷 Loading | 8KN |
抓取尺寸 goods | ?380-?1020mm |
最大張開尺寸 Max Opening | 1460mm |
啟閉最大壓力 Closing pressure | 20Mpa |
旋轉最大壓力 Rotating pressure | 25Mpa |
爪尖最大夾持力 Clamping force | 22KN |
最大輸出扭矩 Output torque | 720Nm |
旋轉方向/角度 Rotation | 360° |
全開時間 Opening time | 6s |
全閉時間 Closing time | 9s |
